PV Cable Gland for Tile Roofs – Laying Solar Cables Without Removing Connectors
Clean Cable Routing Without Tools

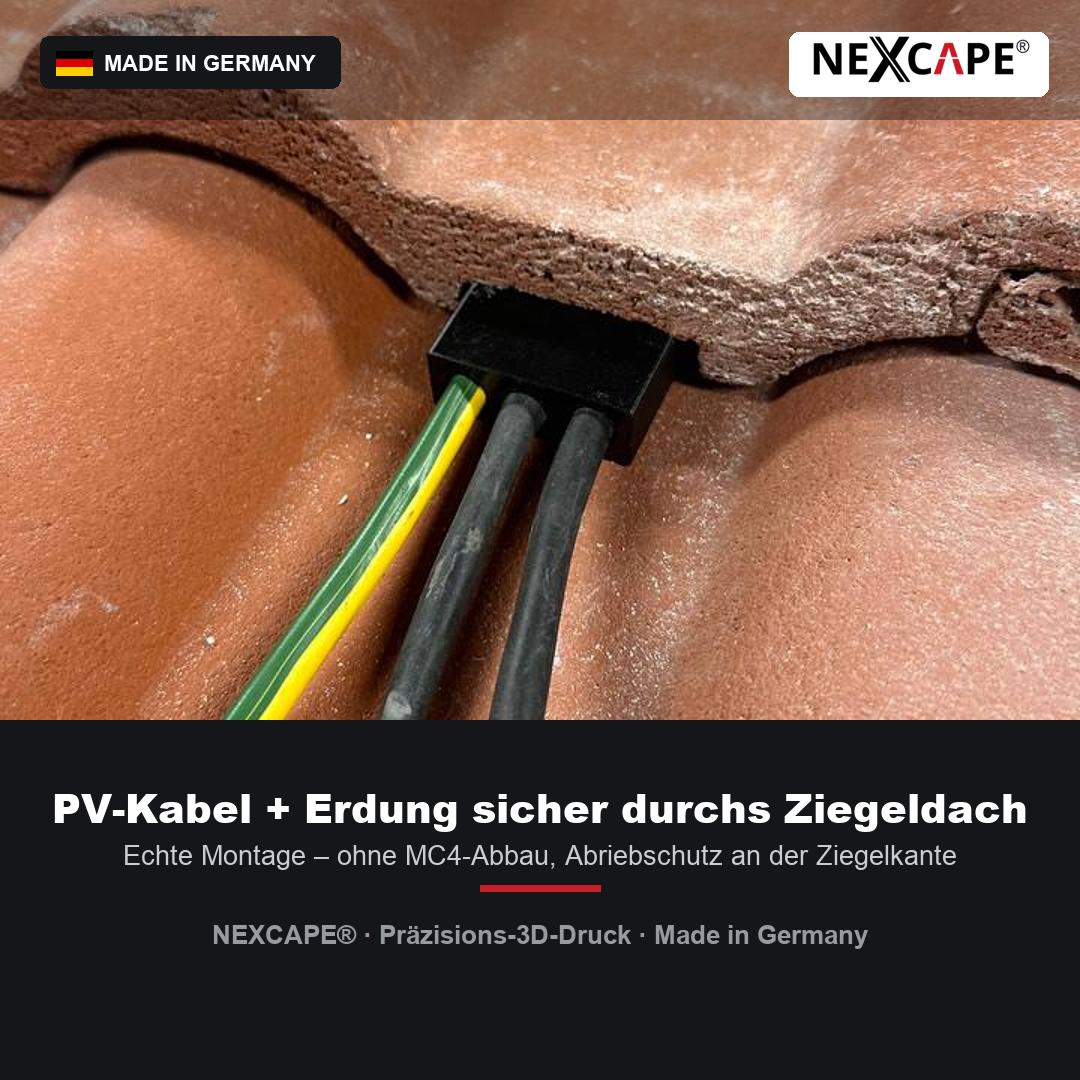

Do you want to route your solar cables through a tiled roof without disassembling MC4 connectors or drilling holes? With the NEXCAPE PV cable gland, you can do this in minutes – easily, cleanly, and without tools. The side guide slots make it possible: insert cables, snap them in, done.
Perfectly suited for balcony power plants, PV systems on single-family homes, carports, garages, or garden sheds.

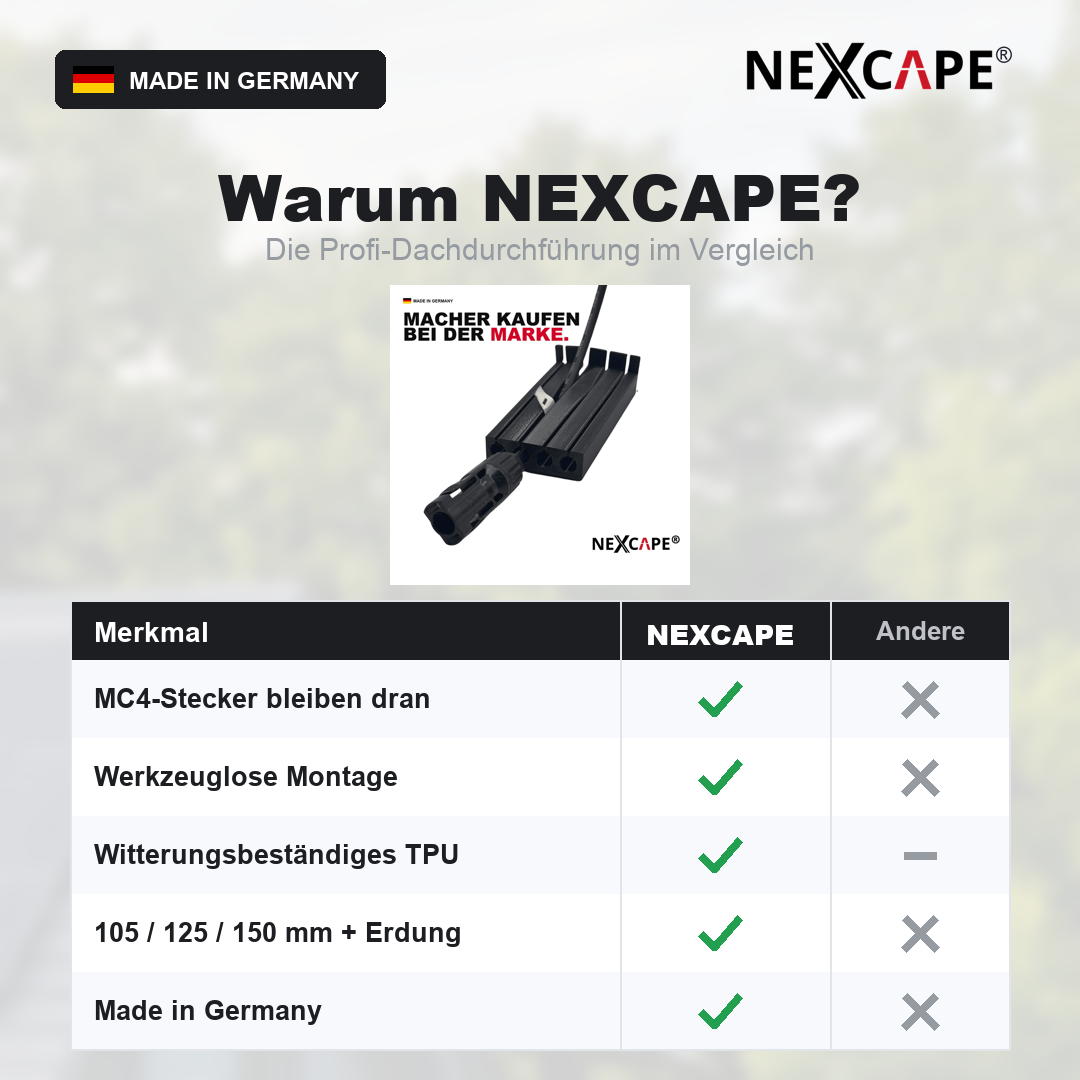

Product Advantages at a Glance
-
✅ No need to remove MC4 connectors – clip cables in from the side
-

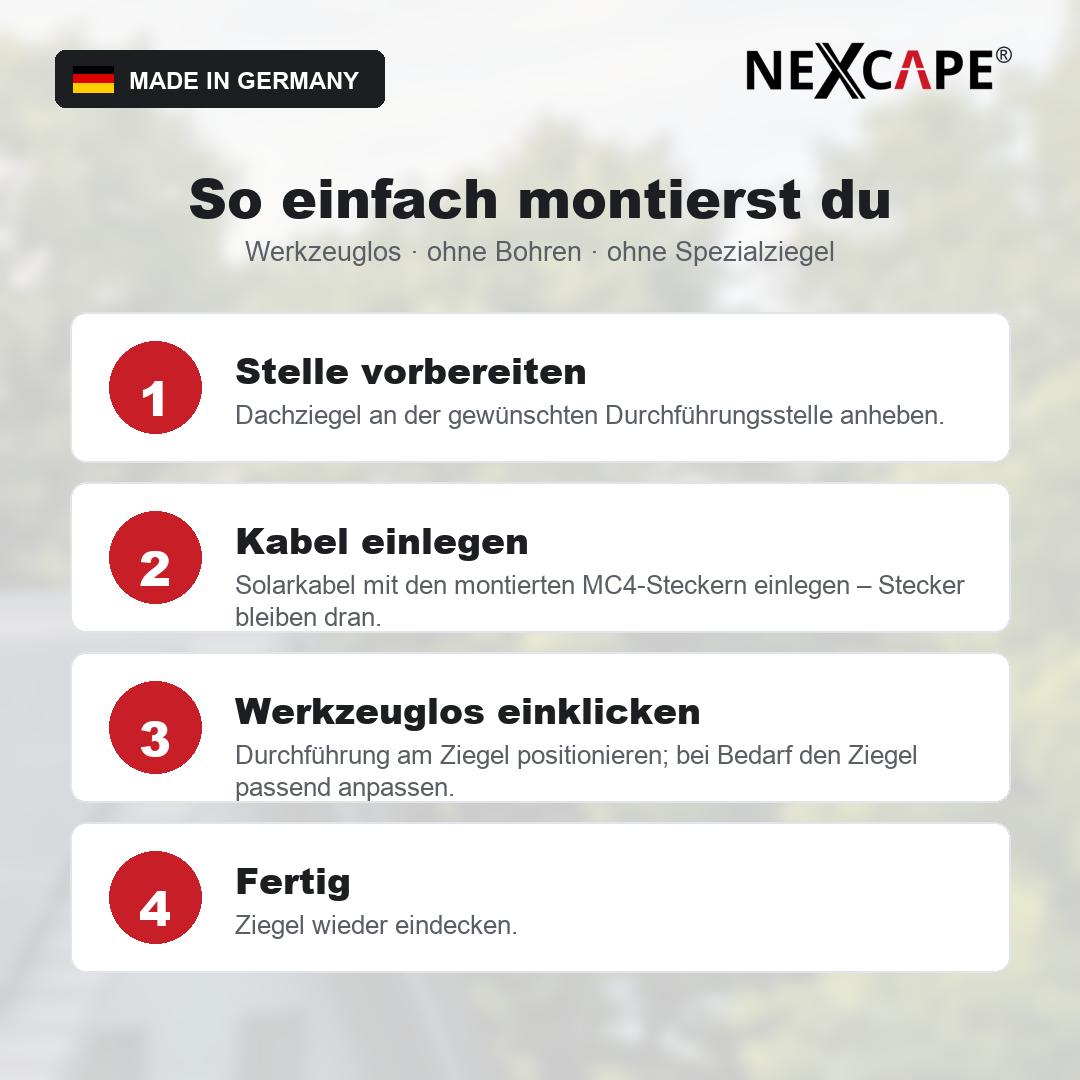

✅ Quick installation – no drilling, no special tiles, no expert knowledge
-
✅ UV & weather-resistant – durable for outdoor use
-
✅ Suitable for standard tiled roofs (approx. 330 mm grid spacing)
-

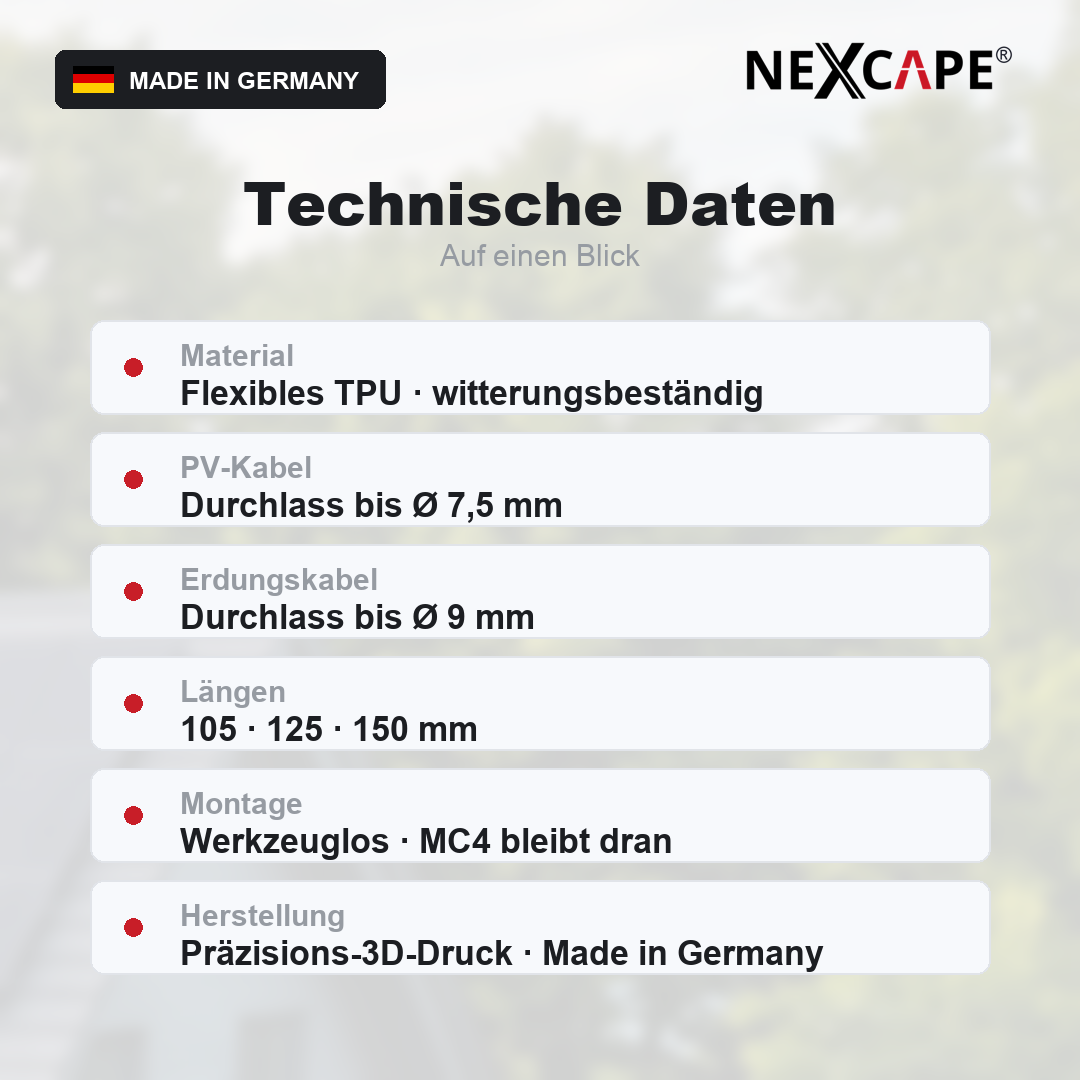

✅ Compatible with PV cables up to 7.5 mm² & grounding cables up to 9 mm²
-
✅ Made in Germany – high-quality 3D printing, precise fit, and robust
Available Variants
-
Lengths: 125 mm
-

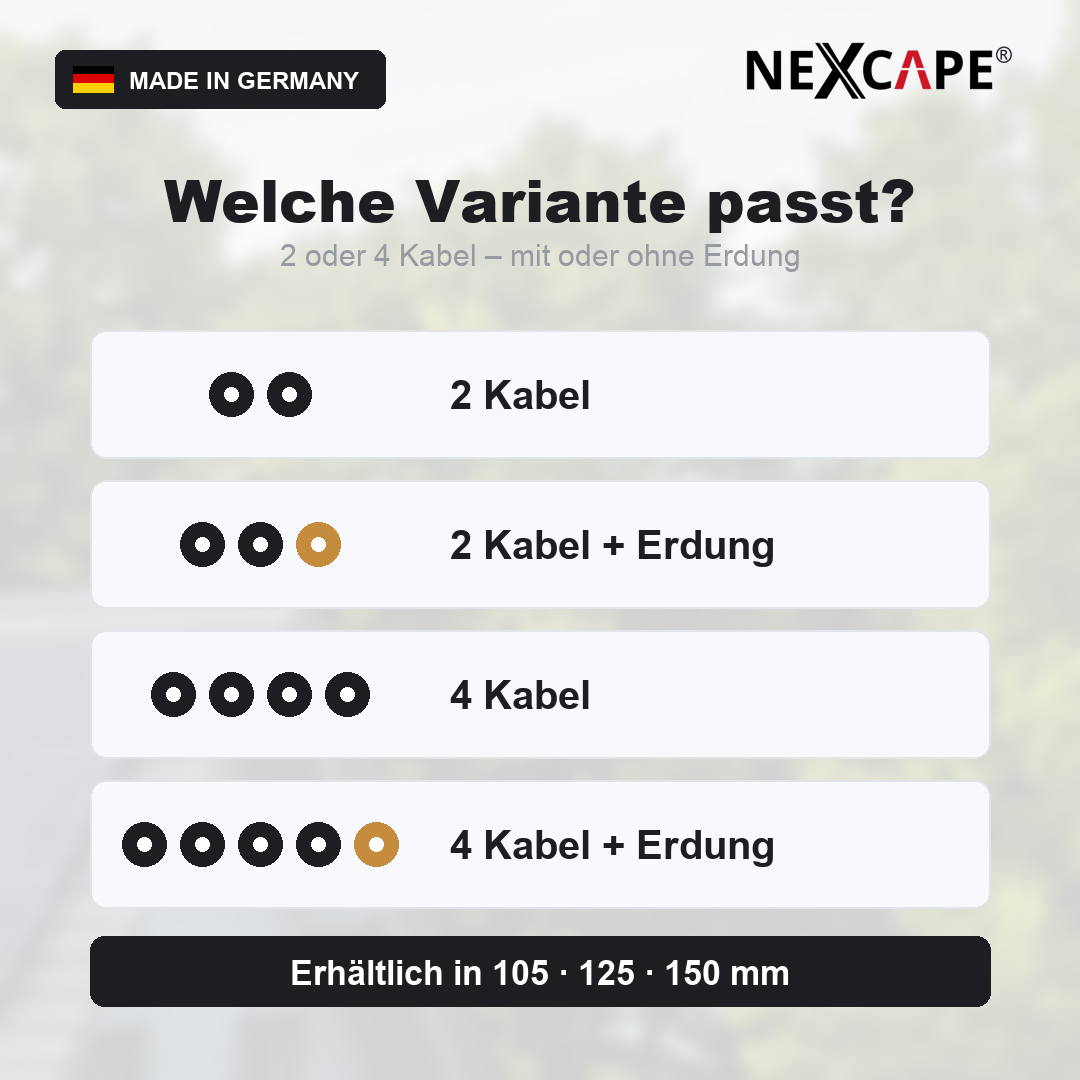

Cable configurations:
-

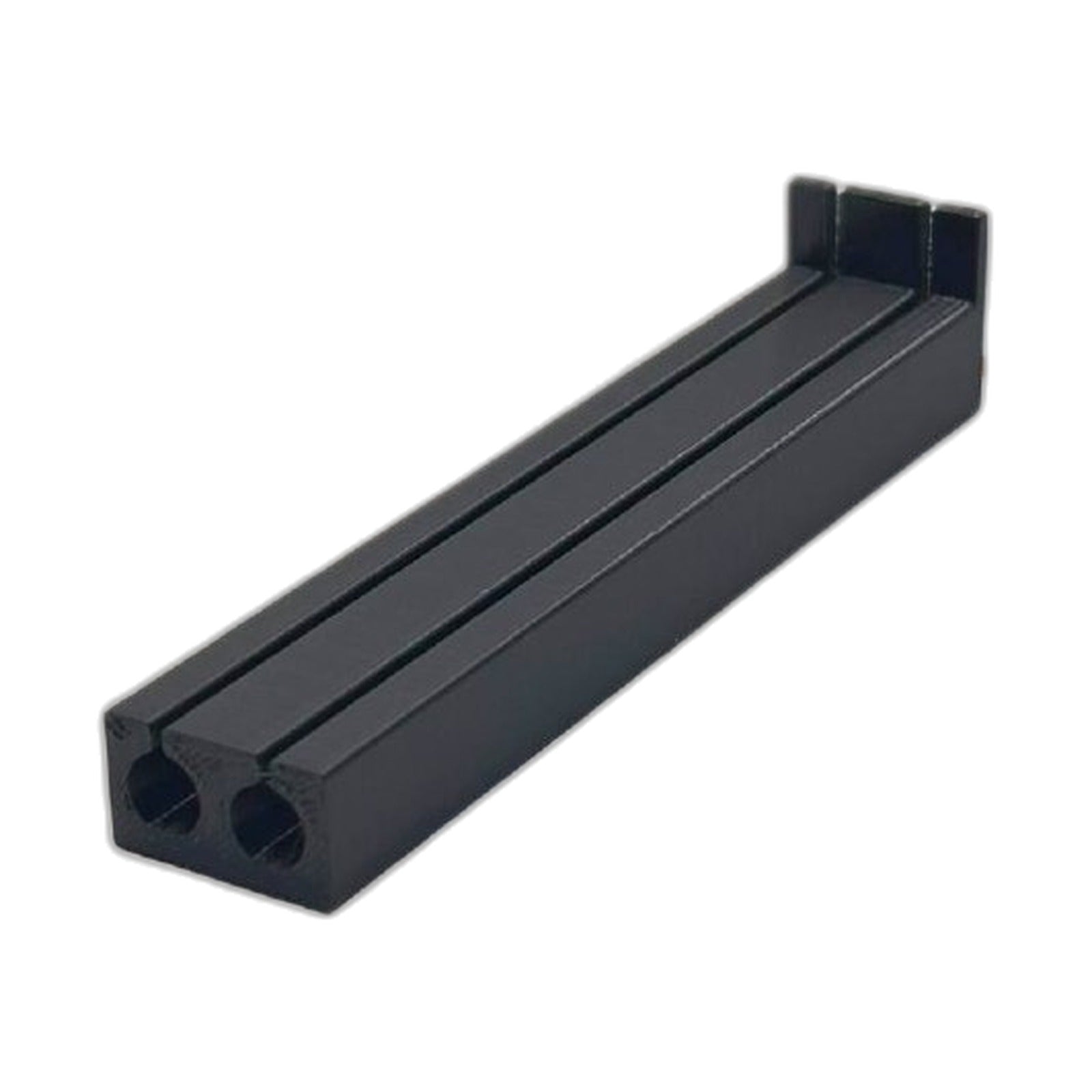

2 cables
-

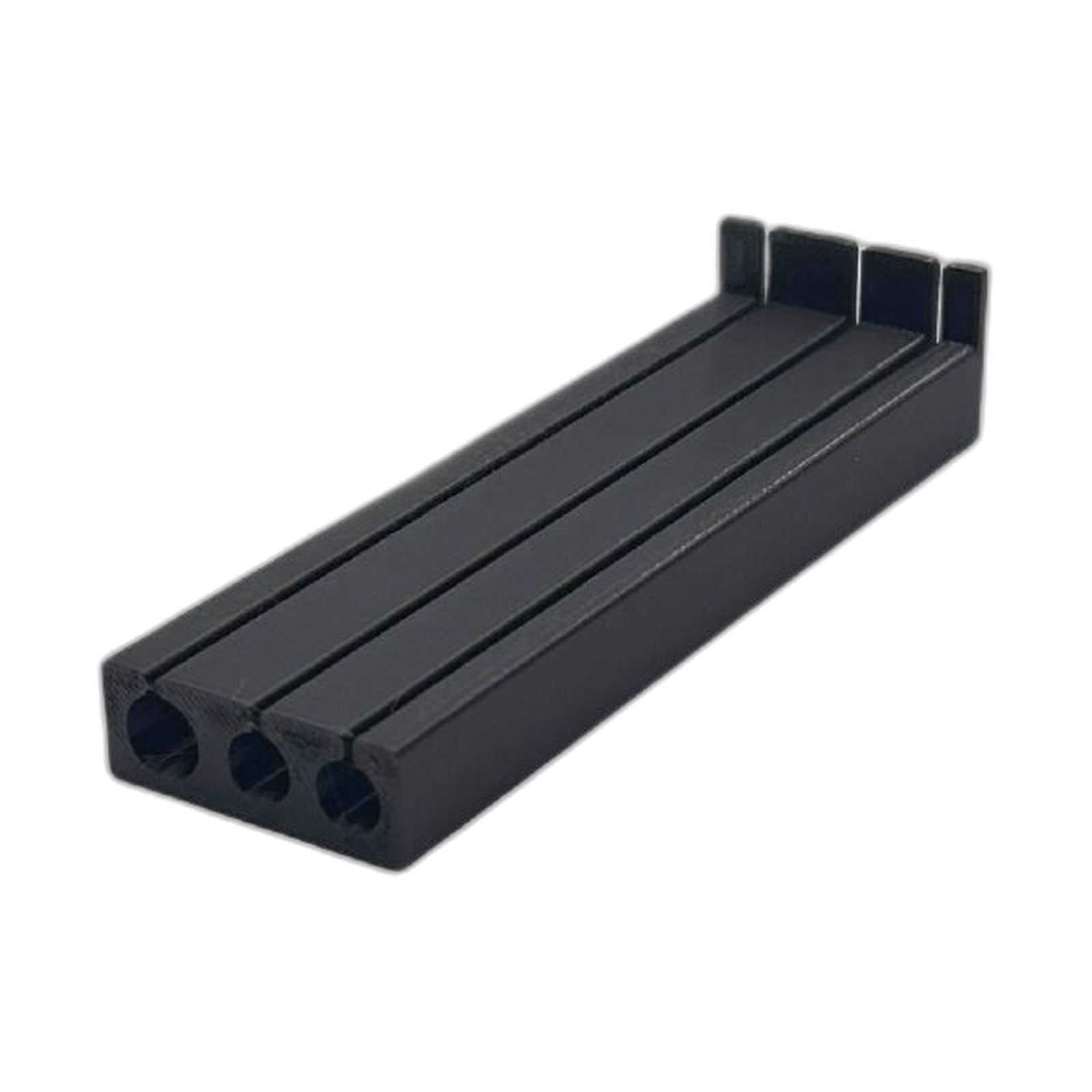

2 cables + grounding
-

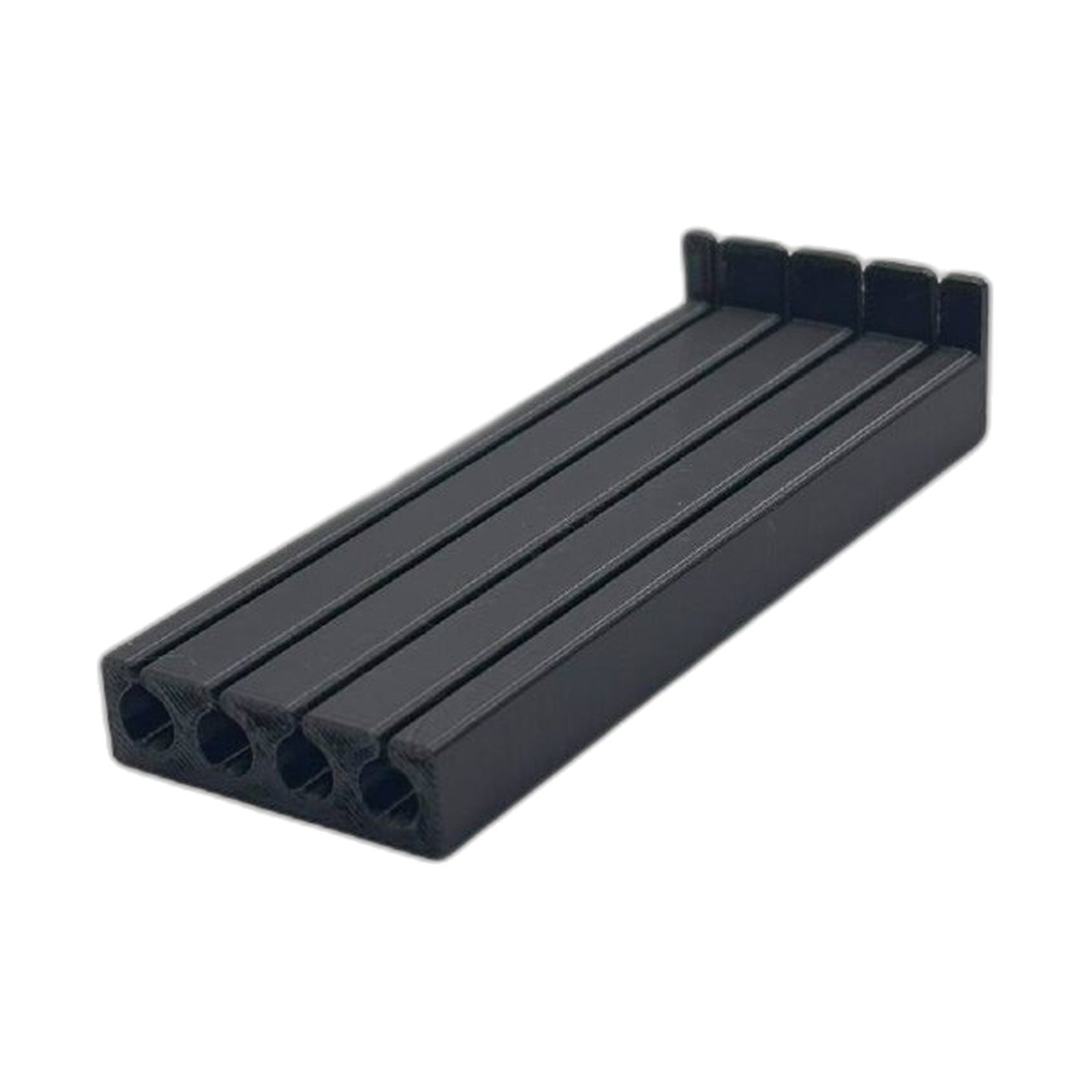

4 cables
-

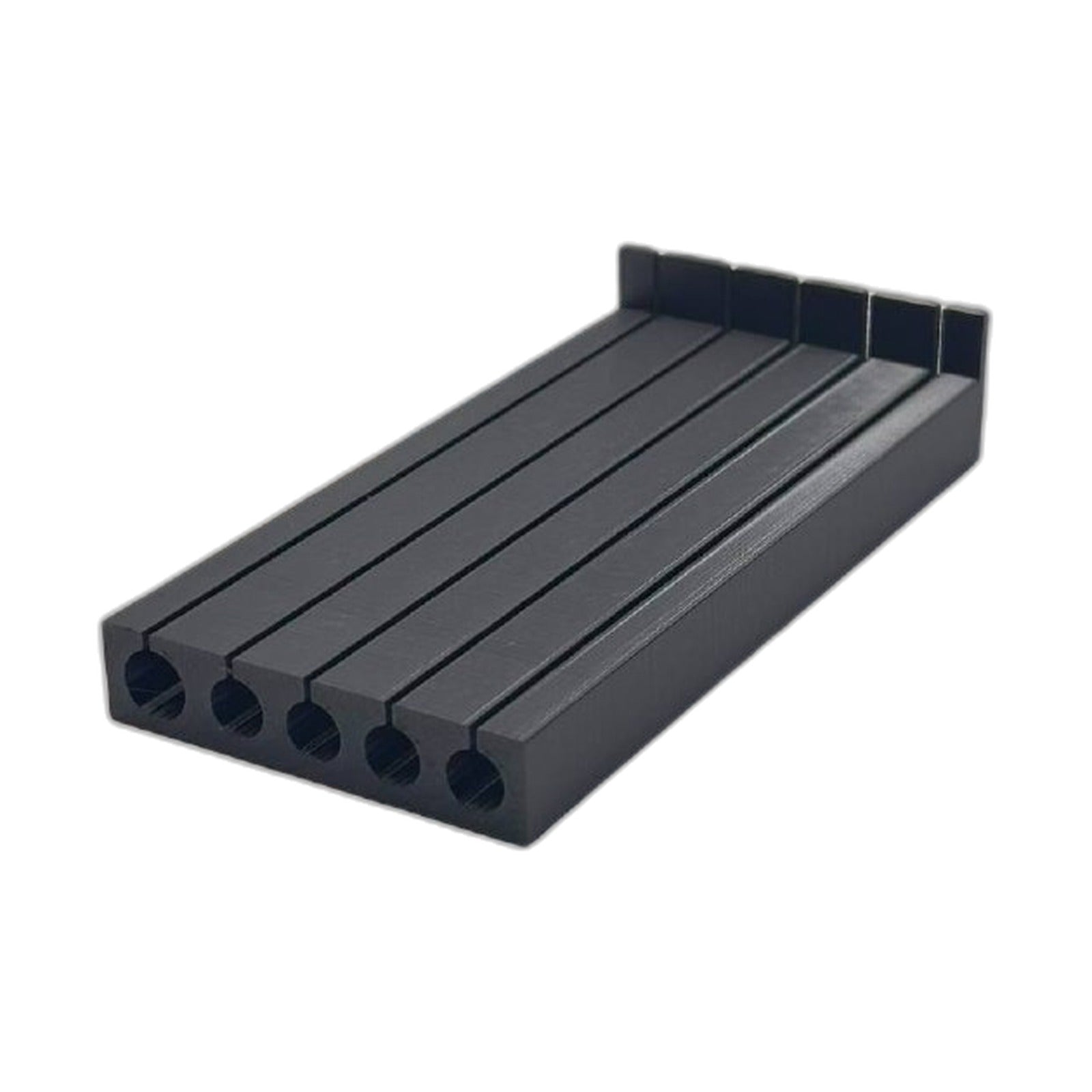

4 cables + grounding
This way, you're guaranteed to find the right solution for your roofing project.
Areas of Application
-
Installation of photovoltaic systems on single-family homes
-
Retrofitting of balcony power plants
-
Cable routing for carports, garages, or garden sheds
-
DIY solutions for homeowners and professionals
Scope of Delivery
👉 With this solution, you save yourself drilling, special tiles, and removing connectors – and still ensure safe, weather-resistant cable routing for your solar system.
To the datasheet
