Solar Corner Mount for RVs & Campers | 4-piece Set | ABS | Screw or Glue | Made in Germany
Solar panel easily and securely on the roof – without compromise.

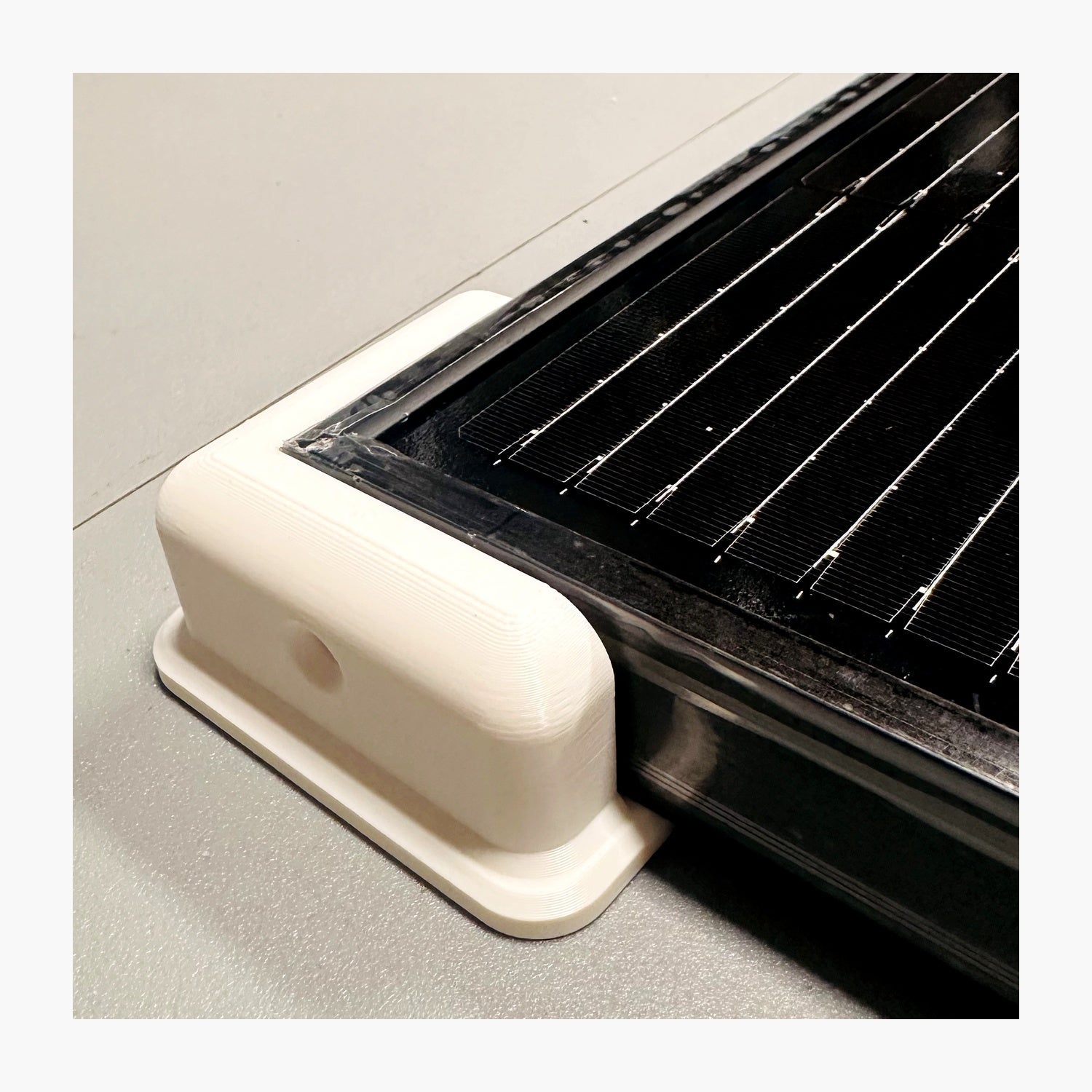

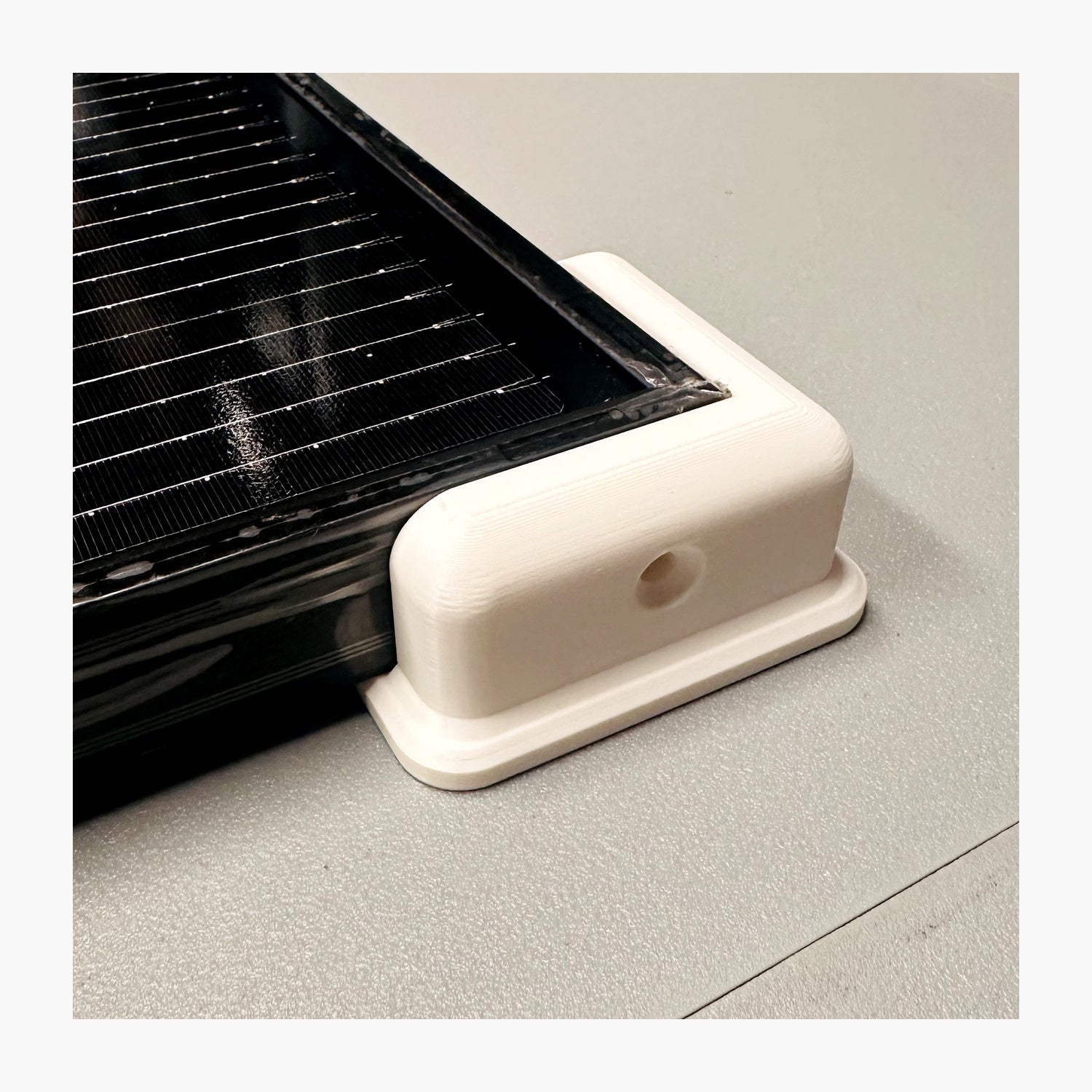

The nexcape solar corner mount reliably secures your panel to any vehicle roof – in motion, wind, and weather. Screw or glue, your choice. Complete set for all four corners. Made in Germany.
4-Piece Complete Set
All four corner mounts in one set – ready for immediate installation, no need to buy more.
Flexible Mounting
Pre-drilled screw hole (Ø 5 mm) or adhesive base for Sikaflex & Co. – you decide.
Stable & Weatherproof
ABS plastic, UV-resistant, temperature-resistant – built for continuous use on the roof.
Universally Compatible
Fits standard aluminum frames 30–35 mm – compatible with most solar panels on the market.
Two Mounting Methods – One Always Fits
Option A – Screwing Position, pre-drill, done. Maximum stability even with strong vibrations and highway driving. Ø 5 mm hole already present.
Option B – Gluing No drill holes, no leaks. Simply apply UV-resistant structural adhesive (e.g., Sikaflex 252), press firmly – done. Ideal for sensitive roof skins.
Compatible with
RVs · Campervans · VW T5 / T6 / T6.1 · Panel Vans · Transporters · Car Roofs · Solar Panels 100 W – 400 W+ · Standard Aluminum Frames 30–35 mm
Technical Specifications
| Feature |
Value |
| Material |
ABS plastic (3D printed) |
| Color |
White (similar to RAL 9010) |
| Scope of delivery |
4× Corner Mounts |
| Attachment |
Screw or Glue |
| Frame fit |
Standard aluminum frame 30–35 mm |
| Width per bracket |
approx. 80 mm |
| Height per bracket |
approx. 50 mm |
| Channel width |
approx. 35 mm |
| Screw hole |
Ø 5 mm |
| Weight per piece |
approx. 45 g |
| UV resistant |
Yes |
| Made in |
Germany |
Developed & manufactured in Germany · Quality 3D printing from ABS · support@nexcape.de · nexcape.de — For doers, not followers
